Description

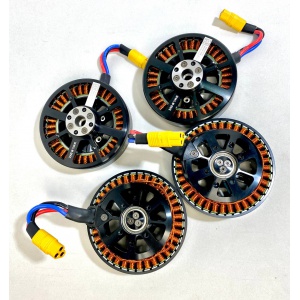

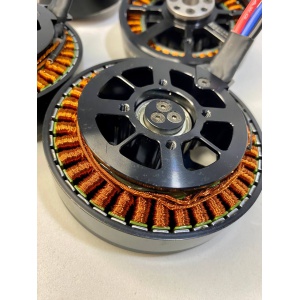

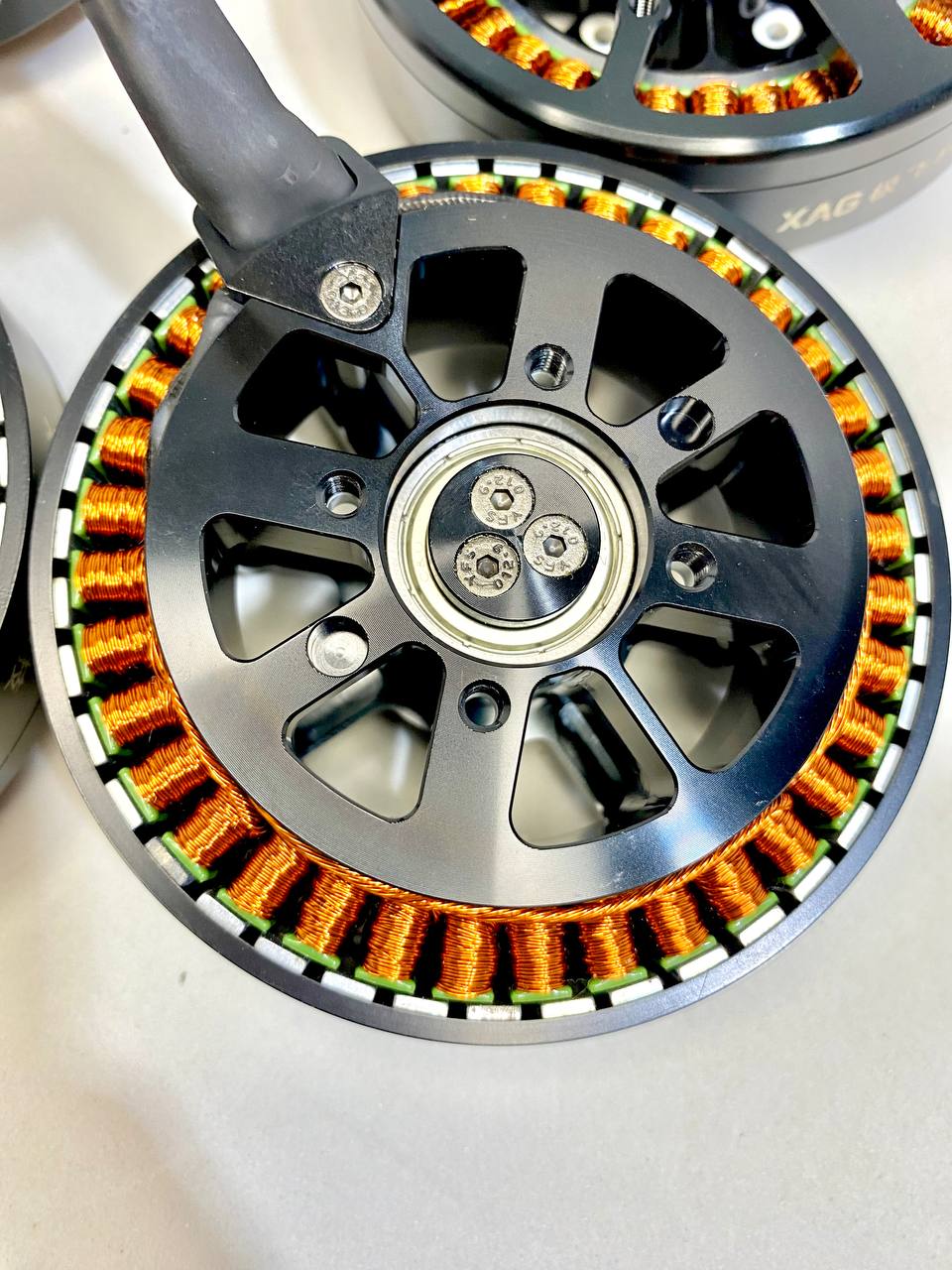

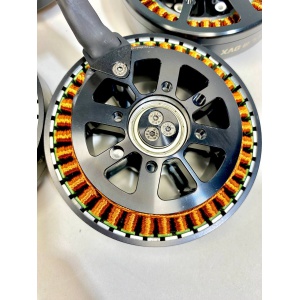

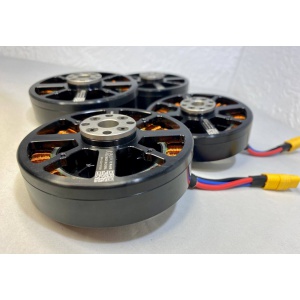

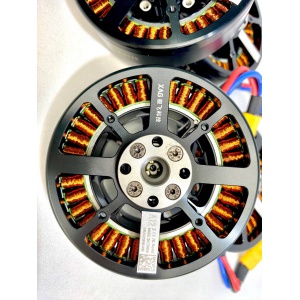

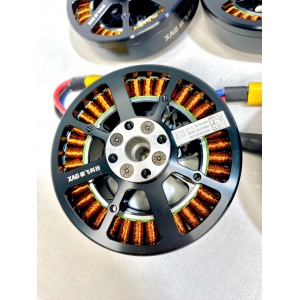

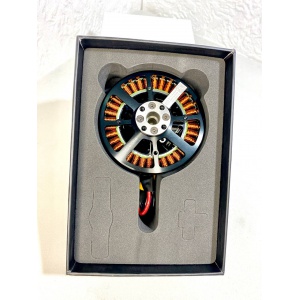

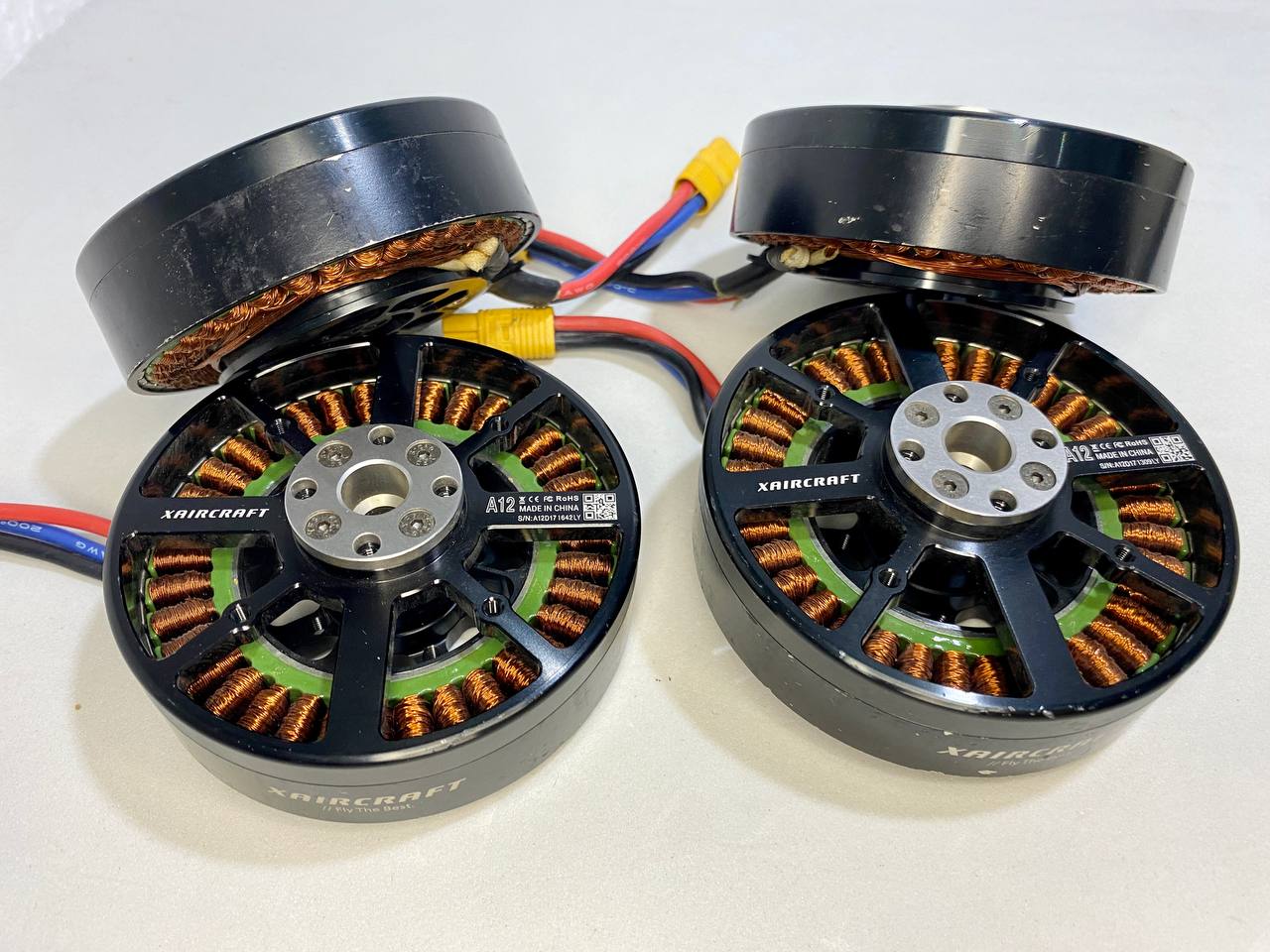

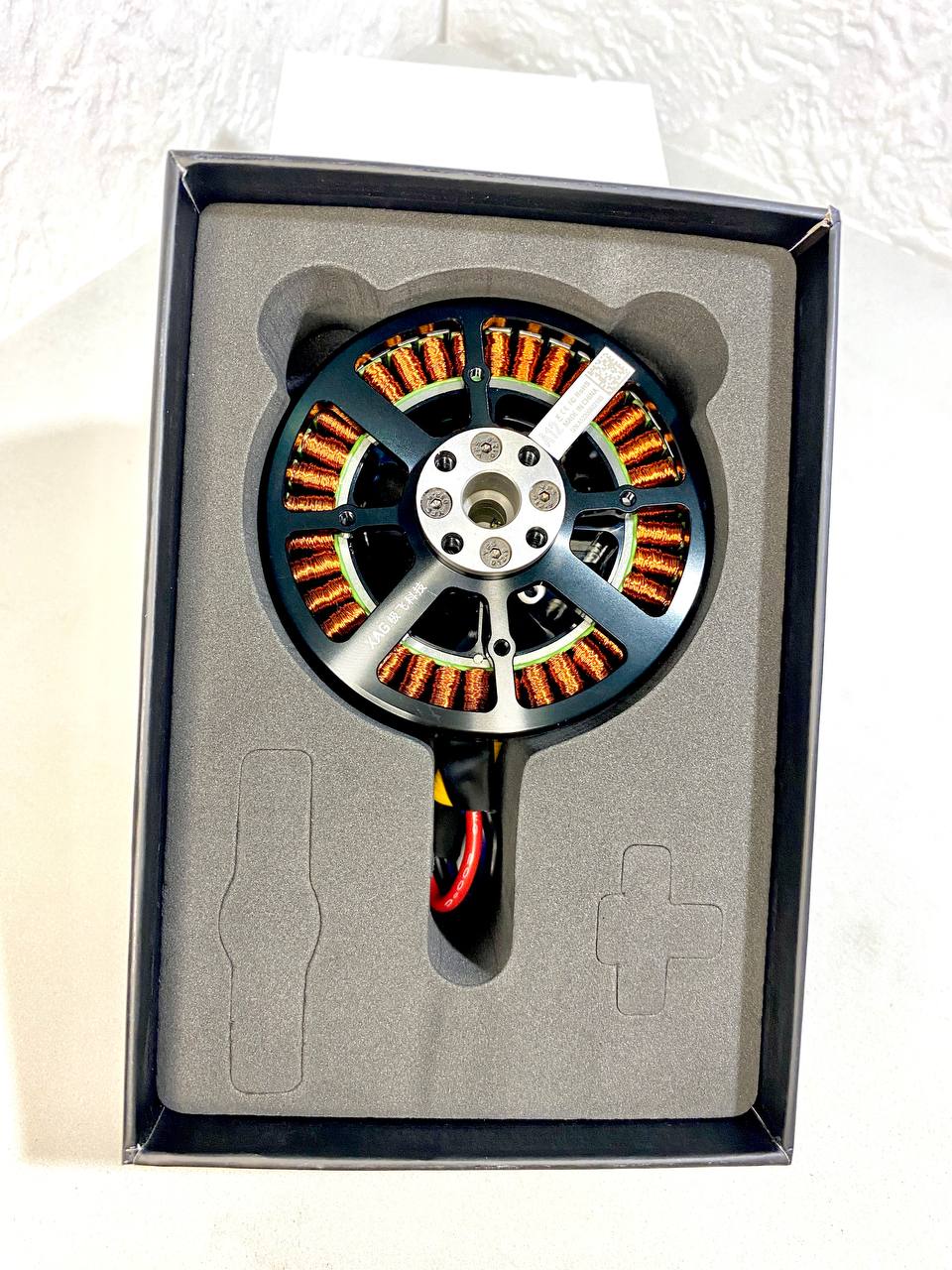

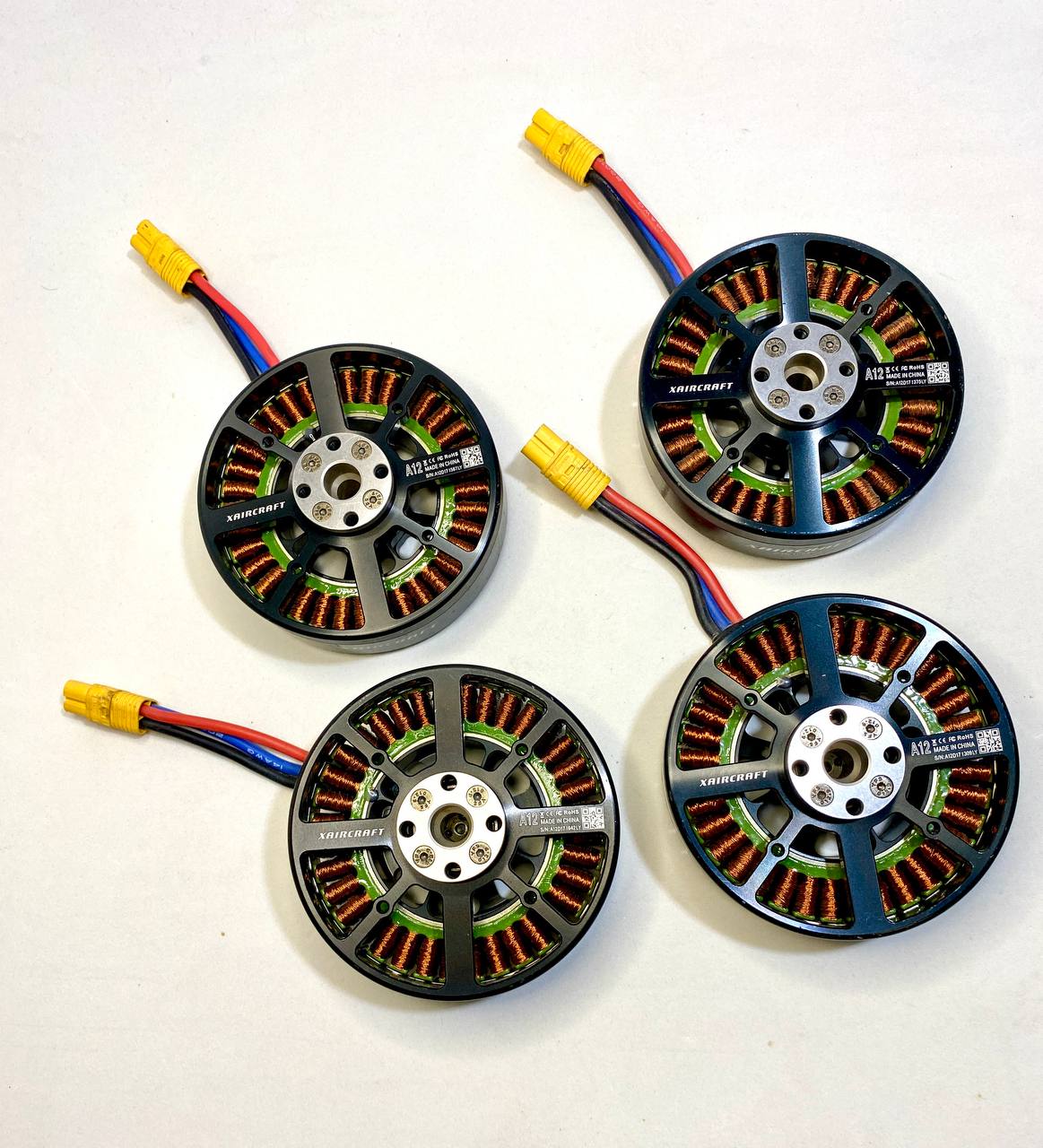

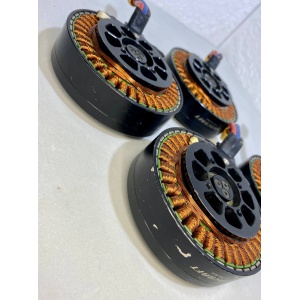

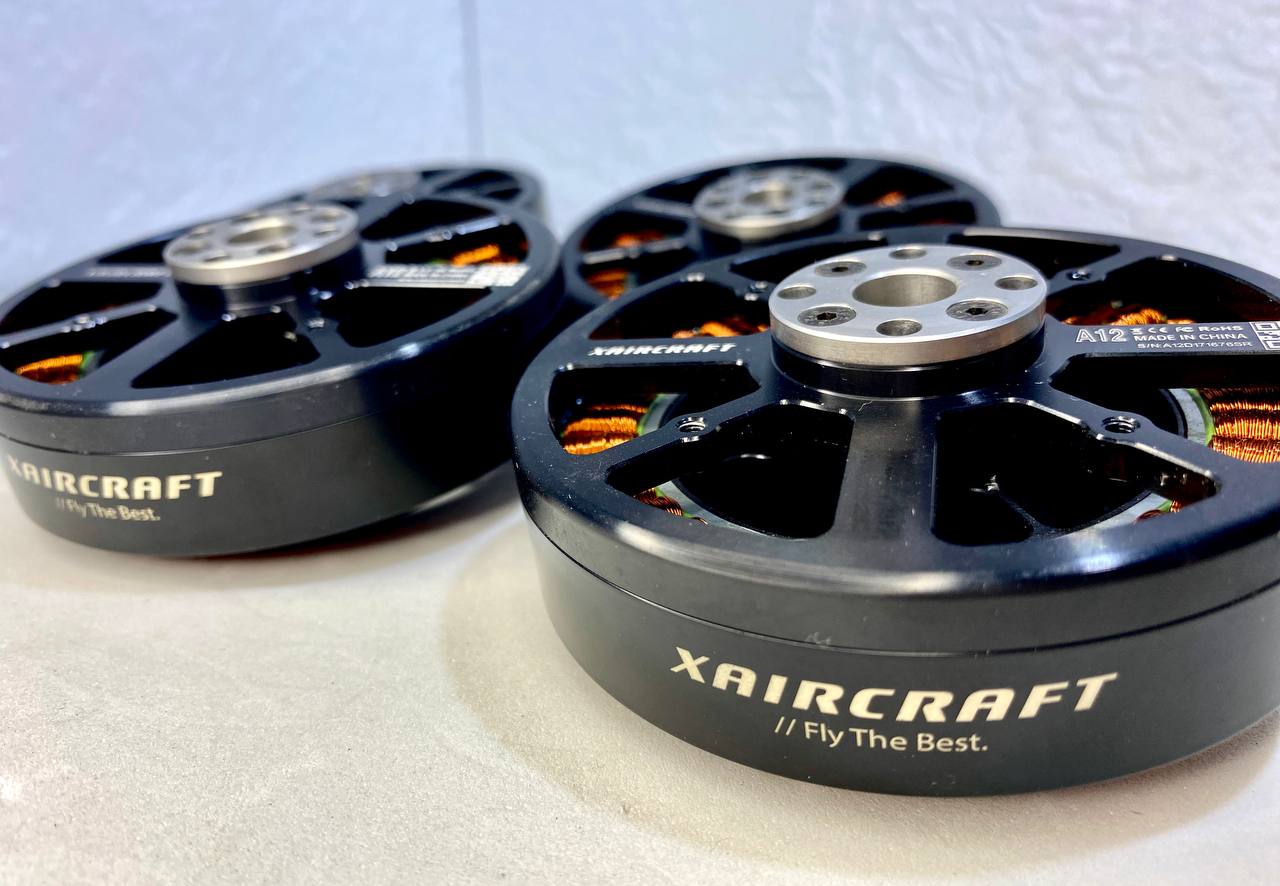

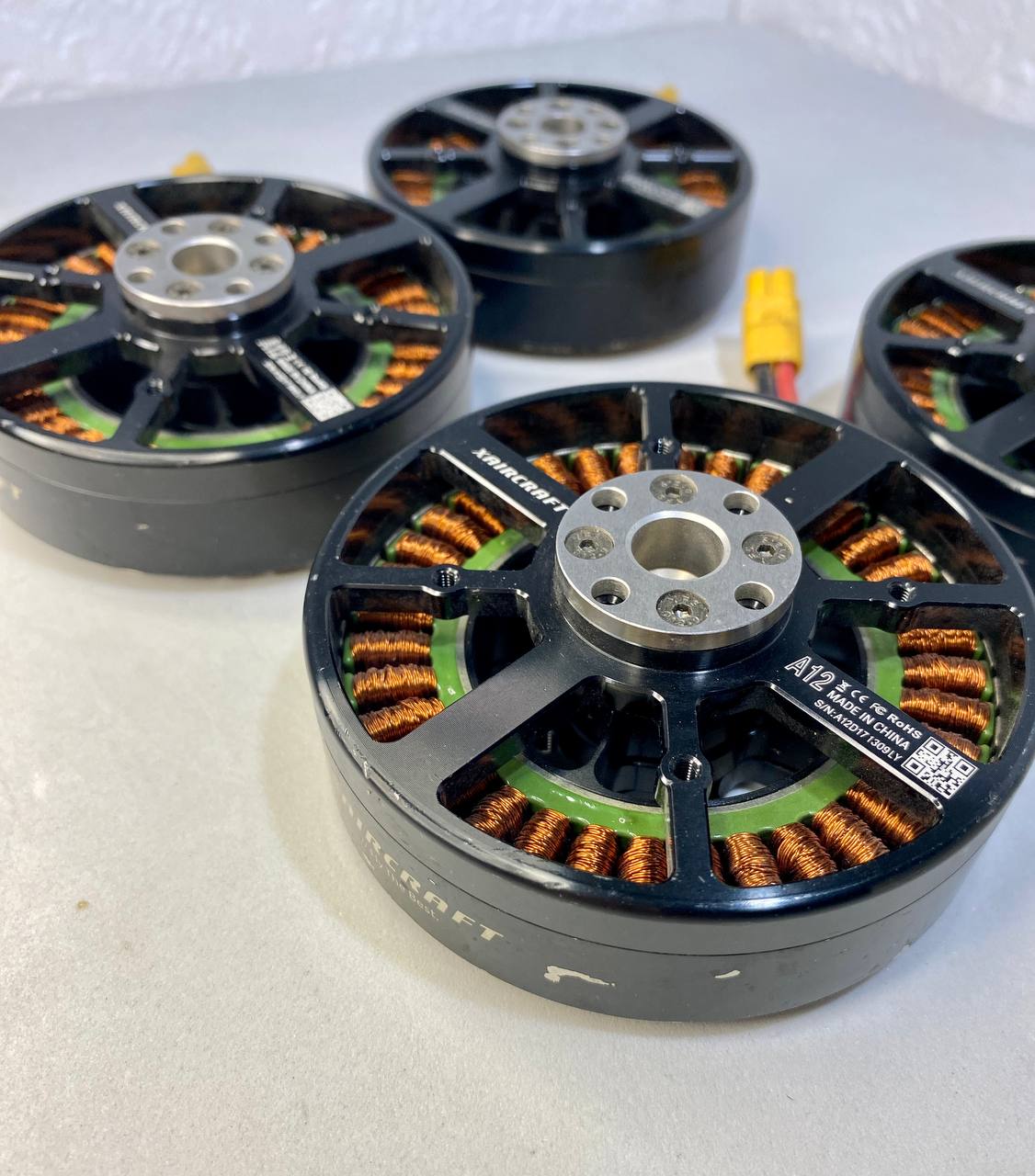

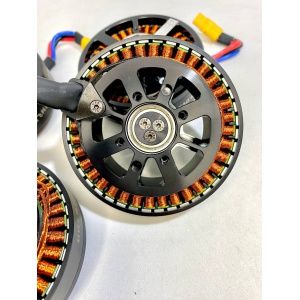

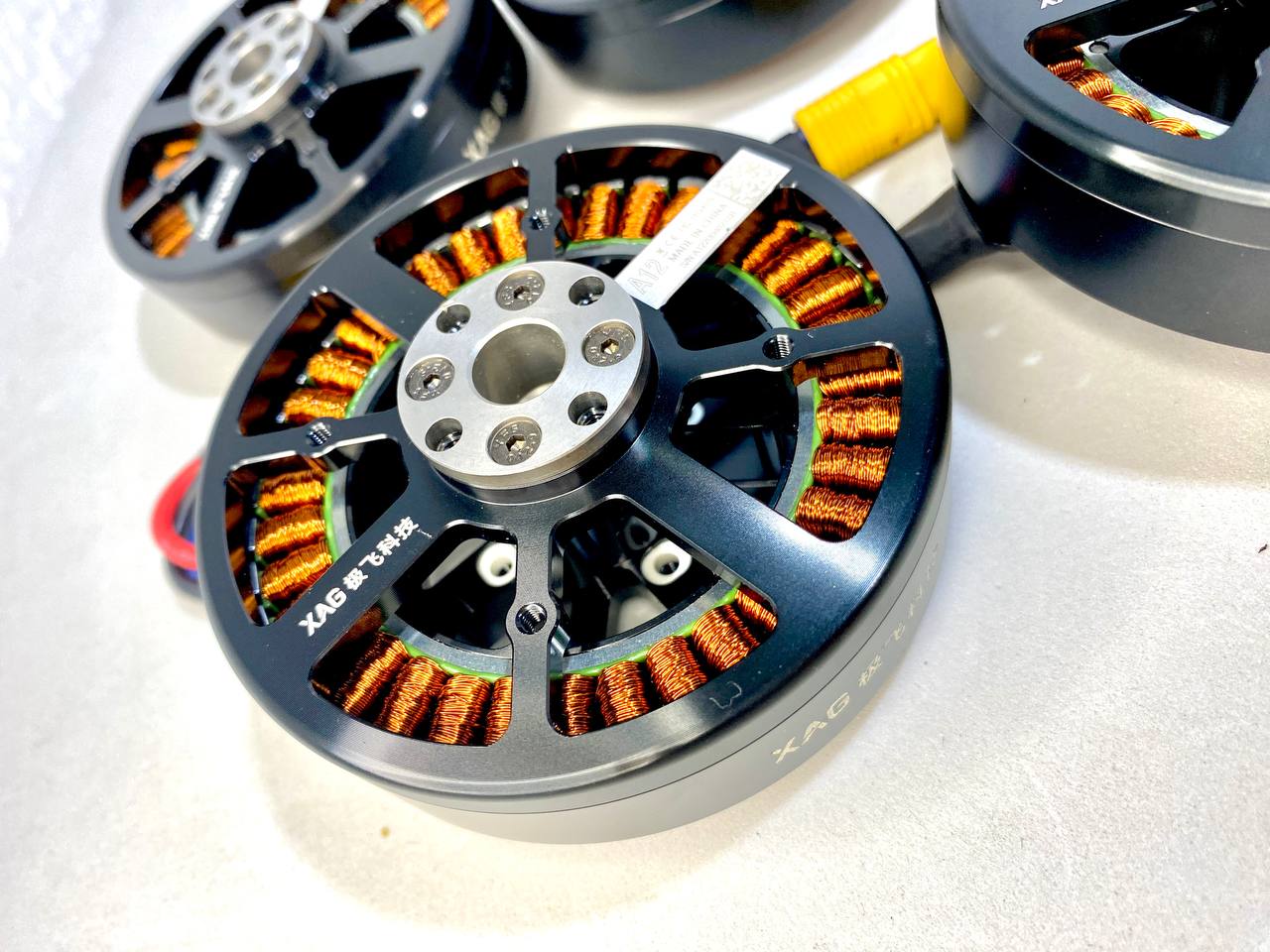

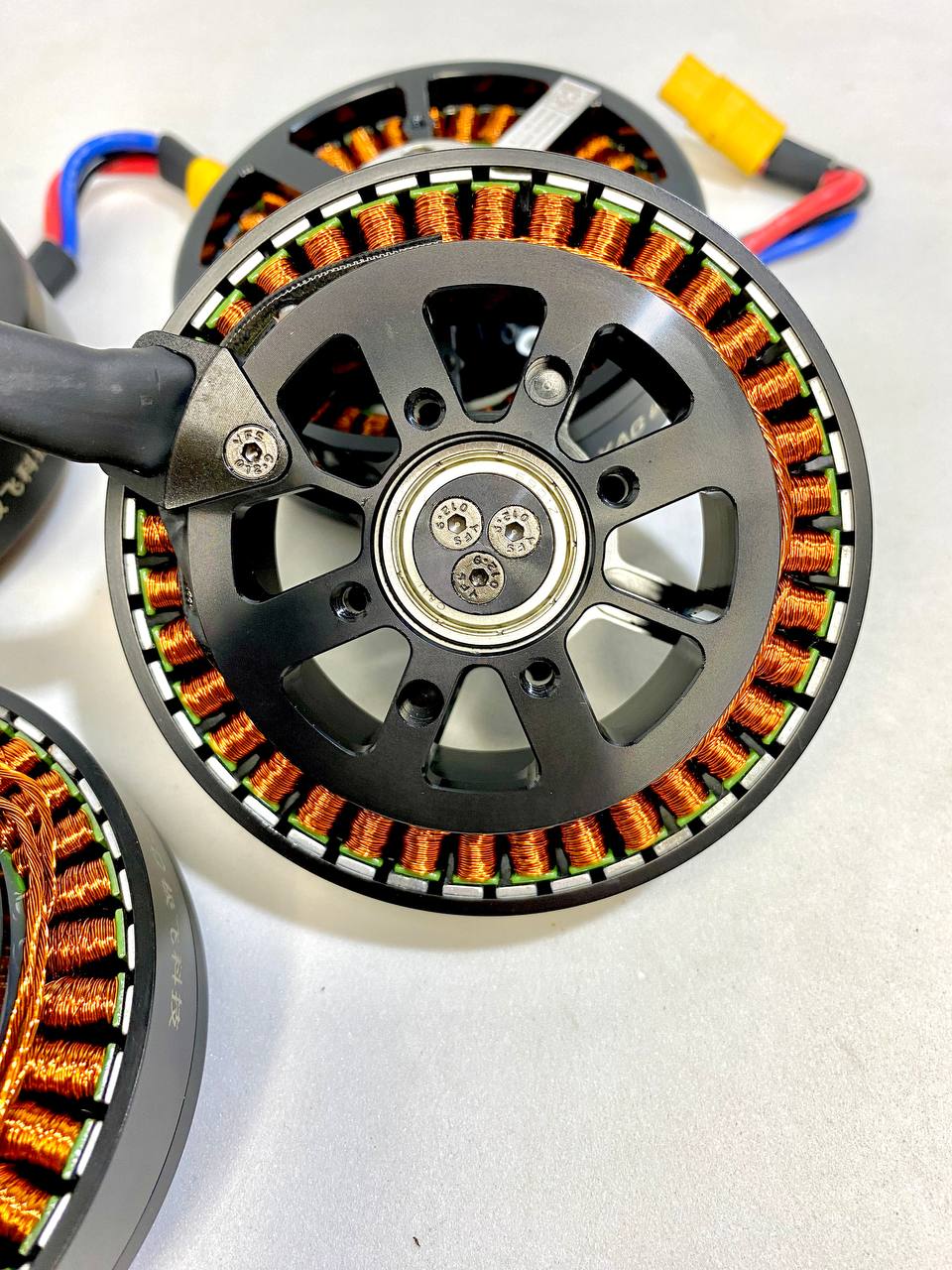

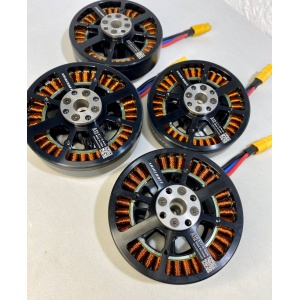

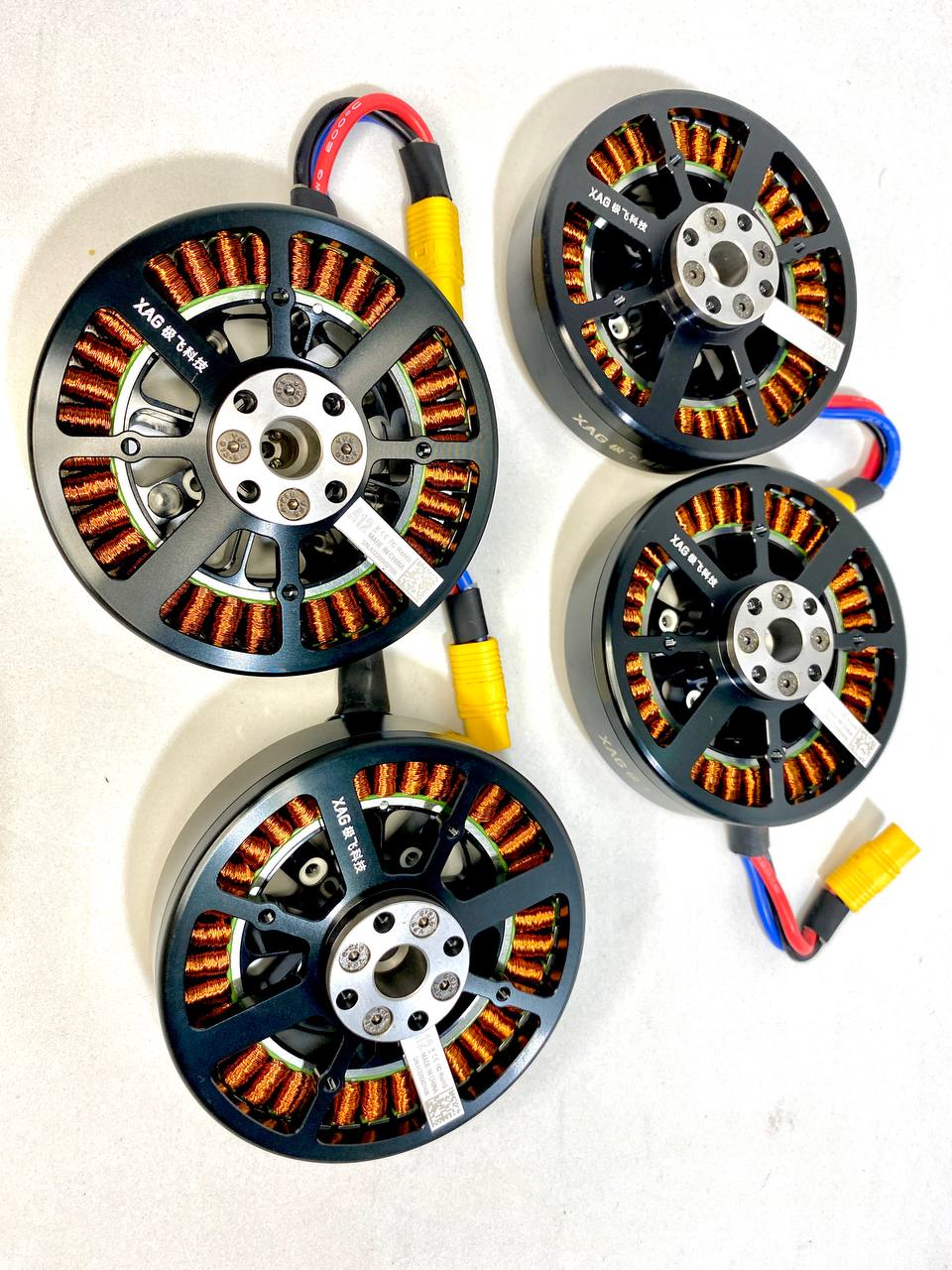

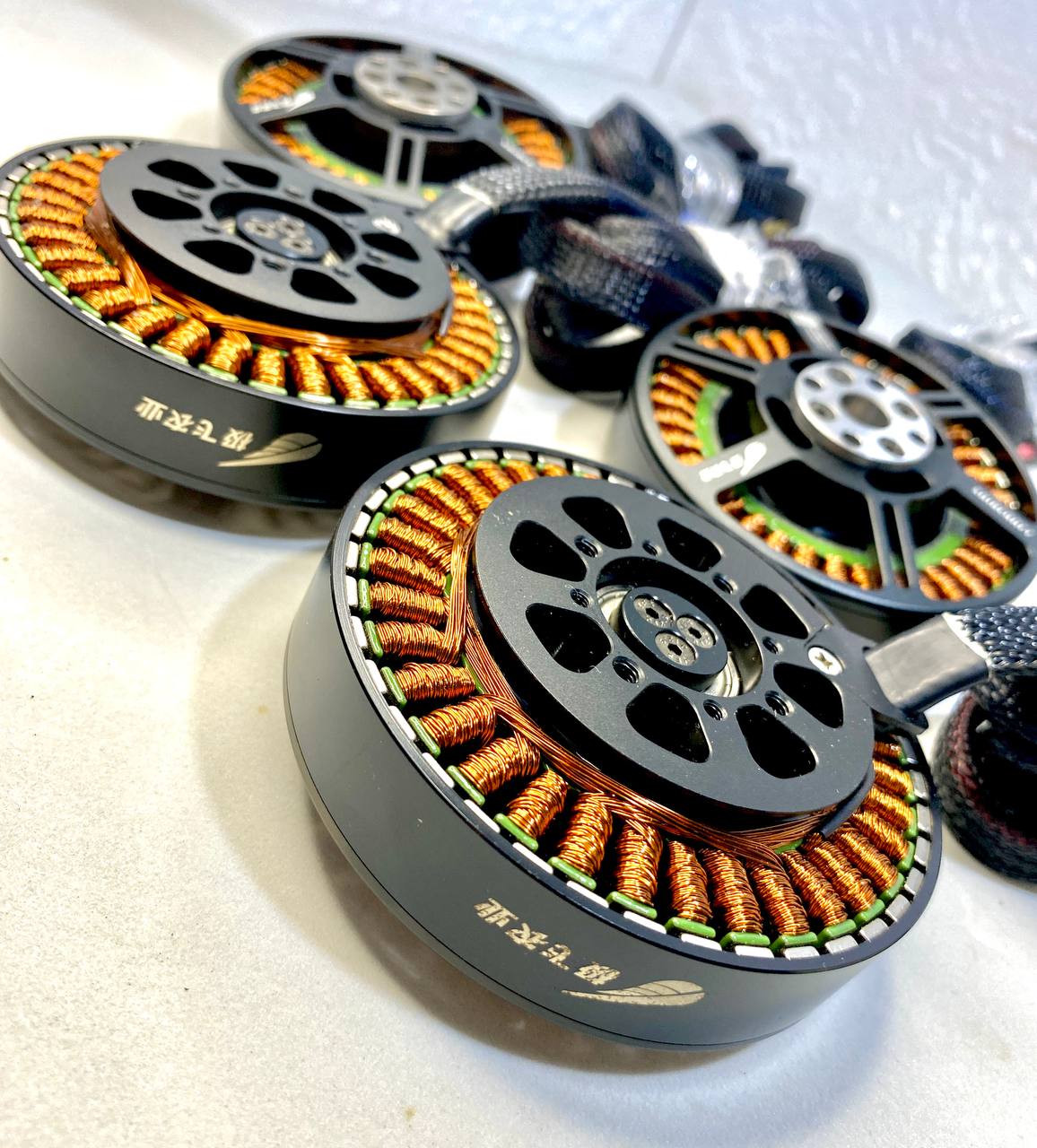

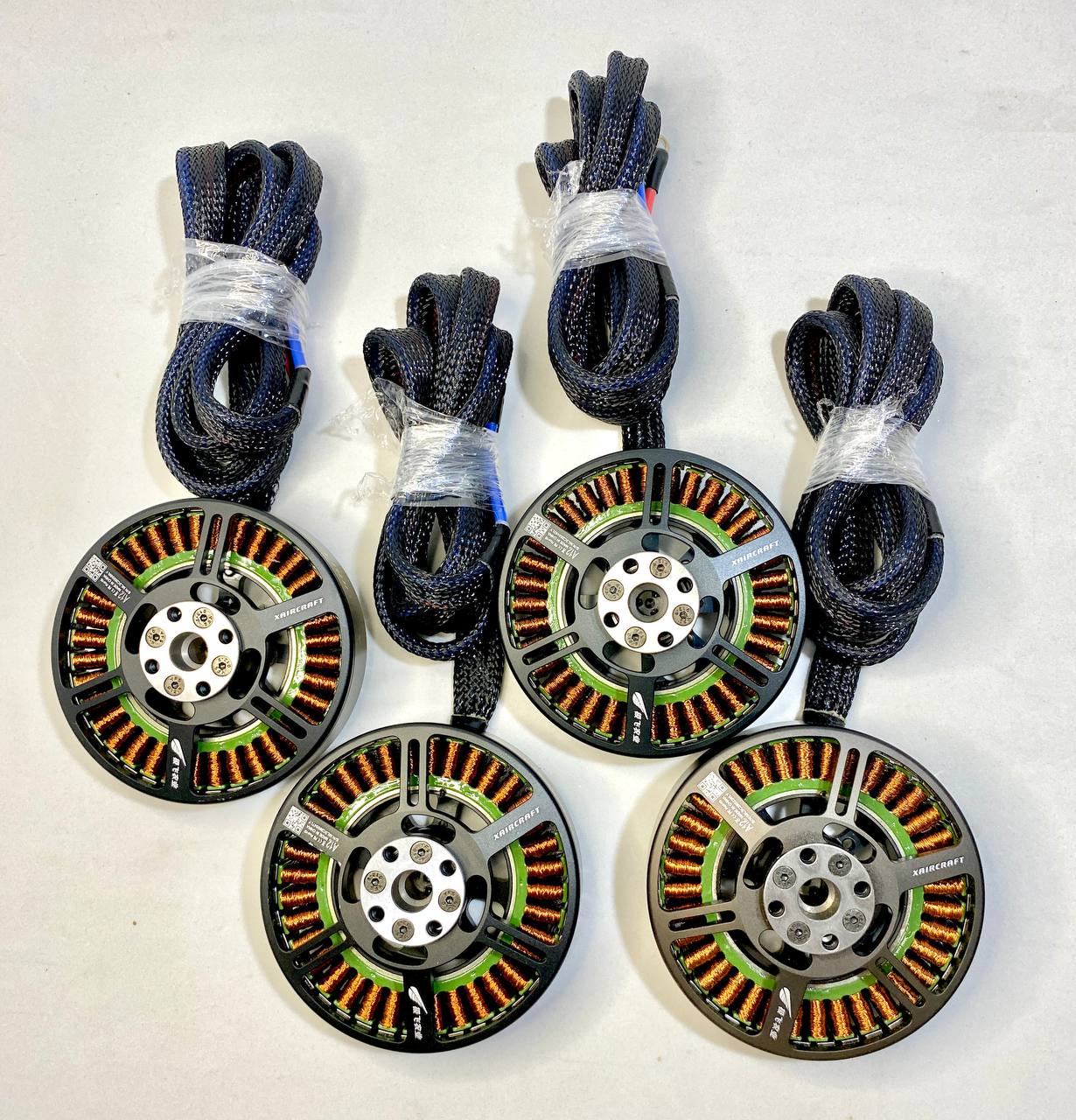

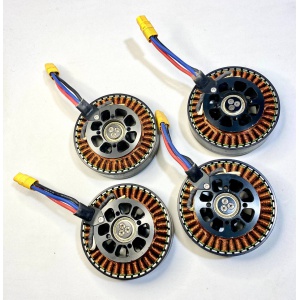

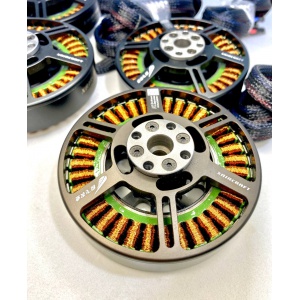

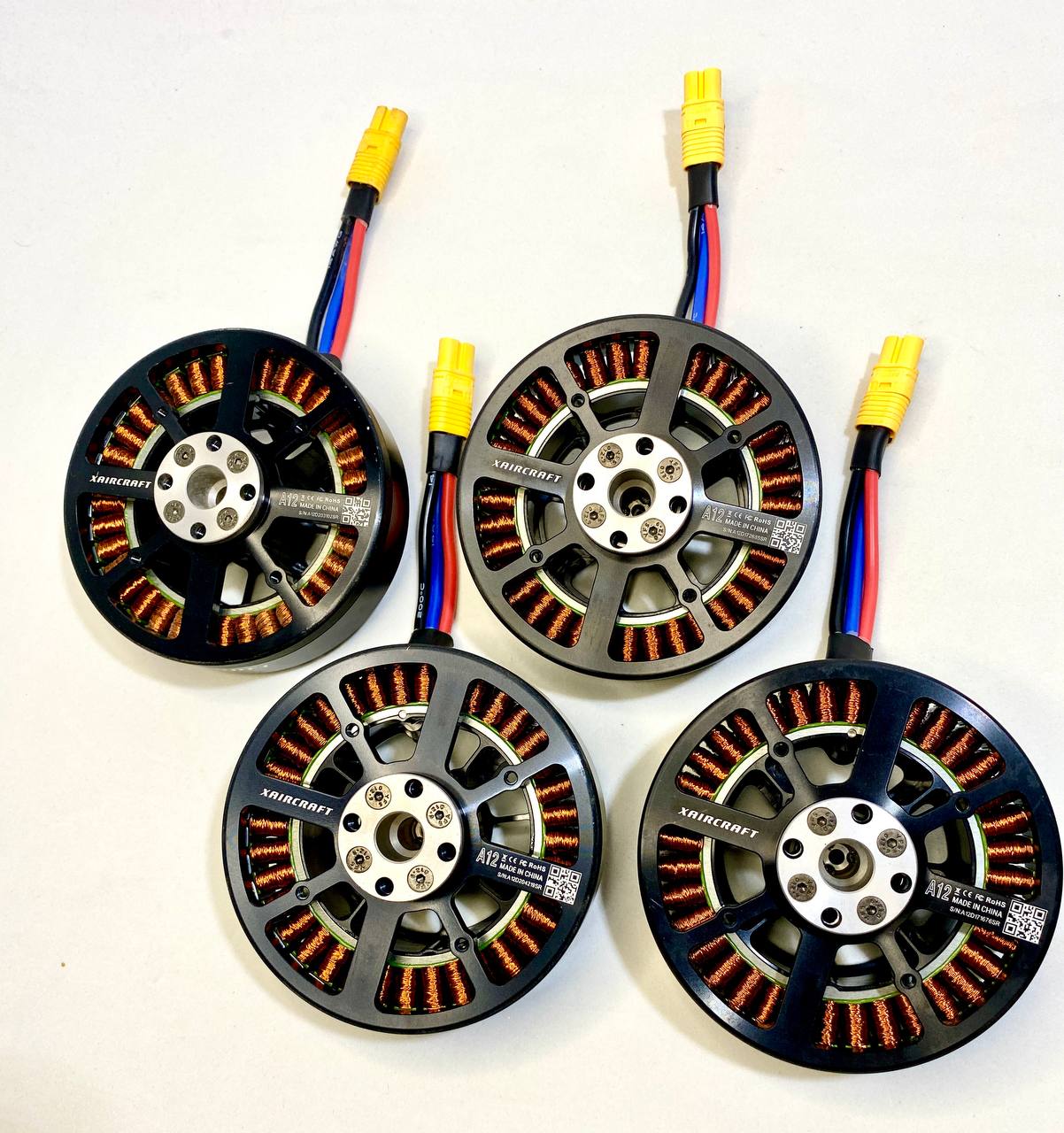

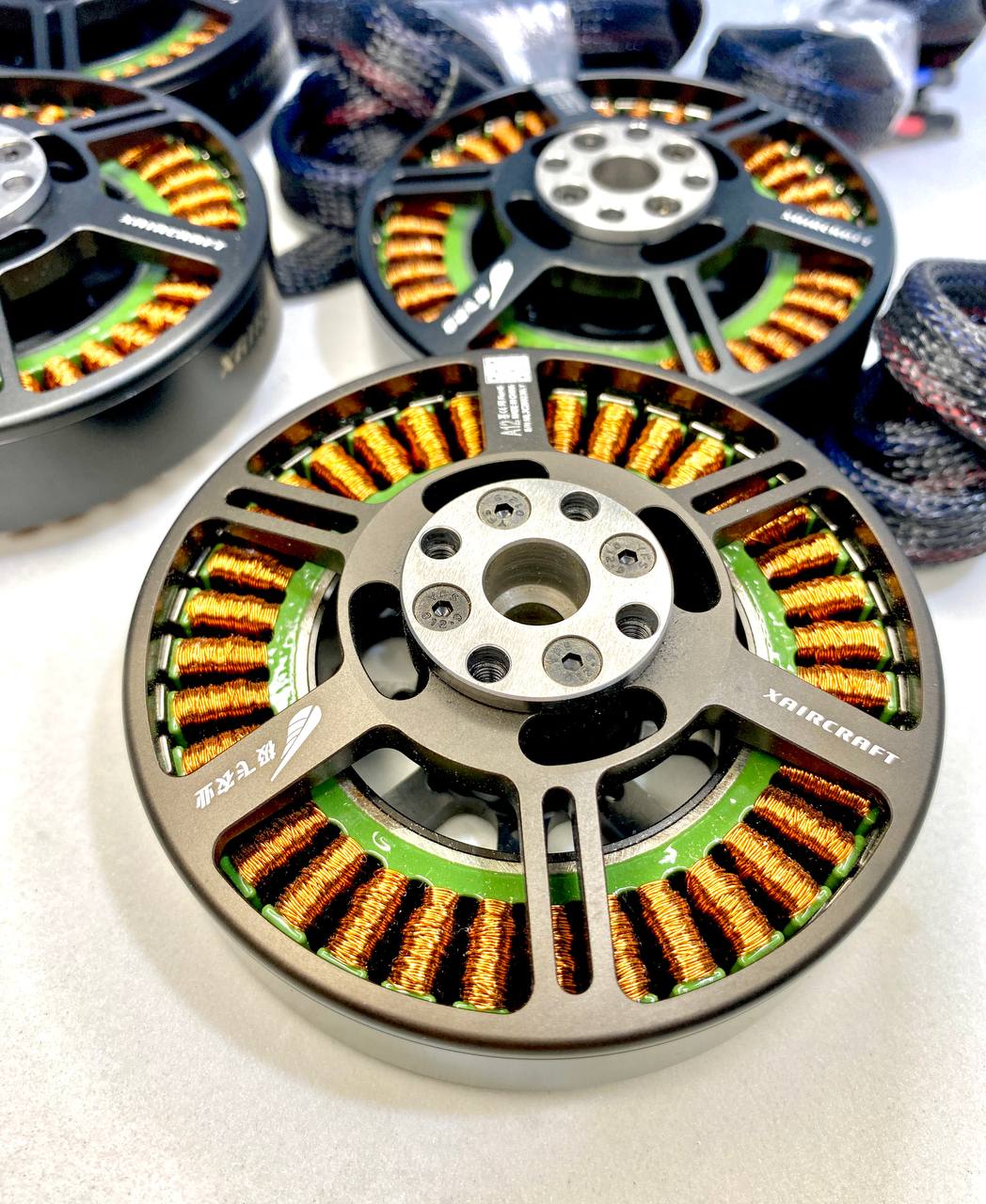

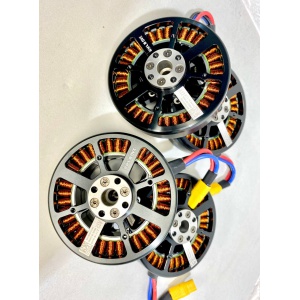

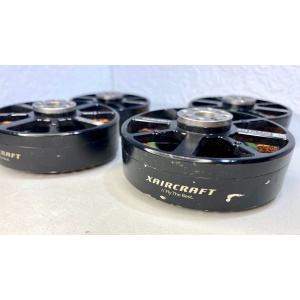

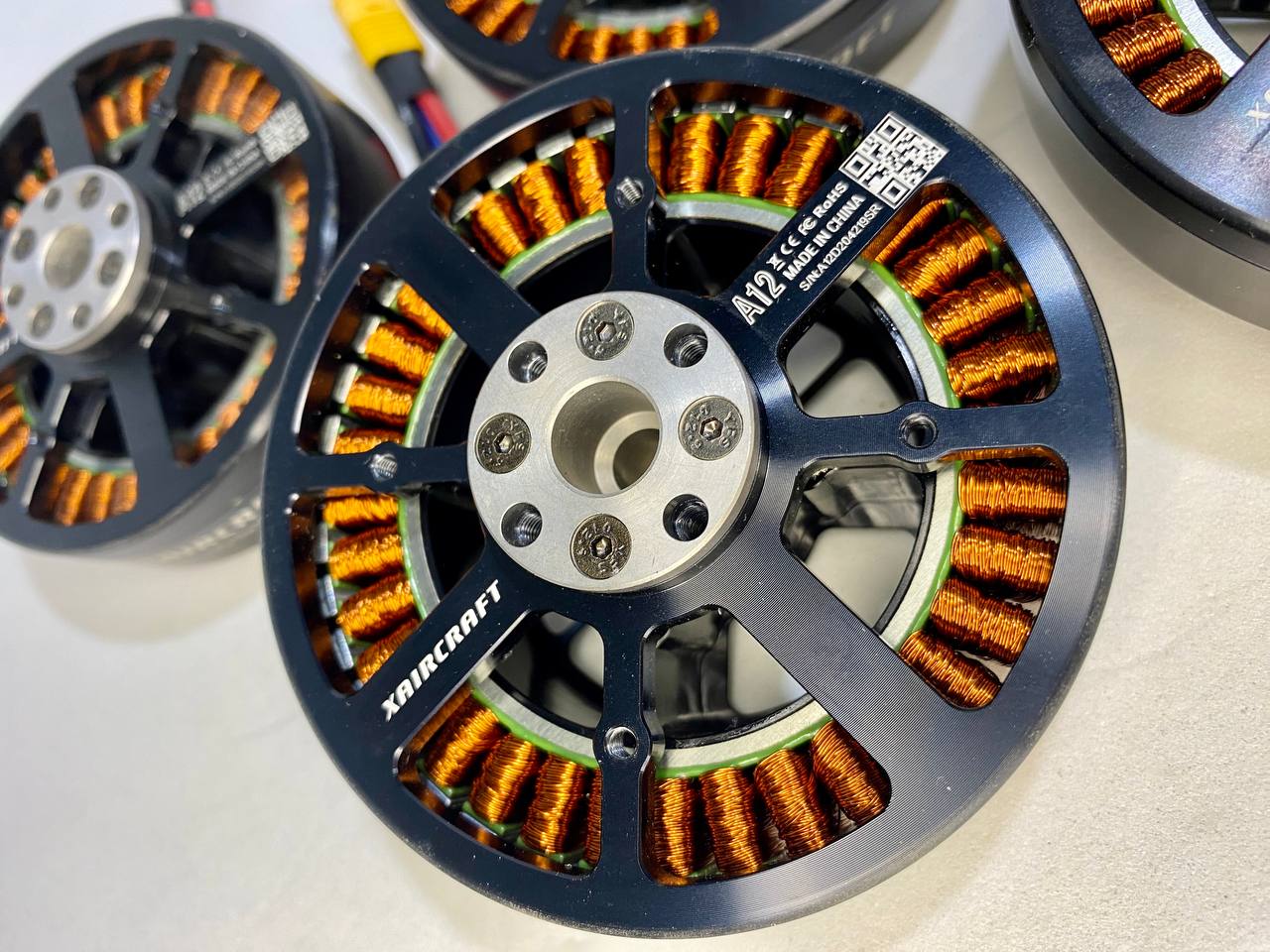

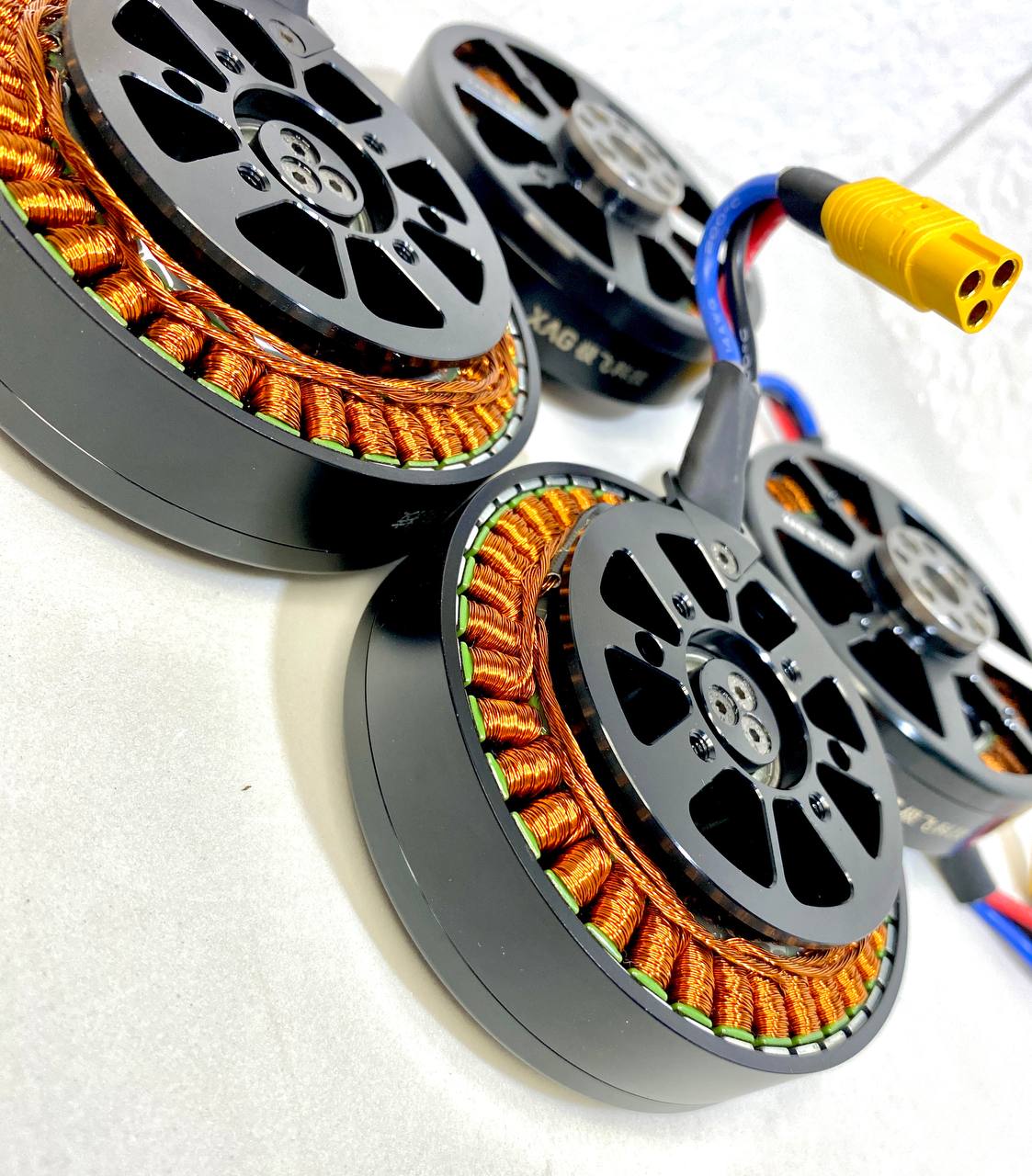

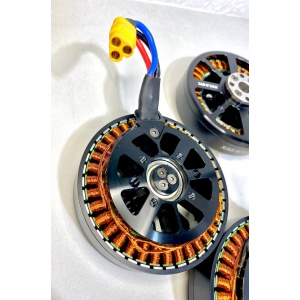

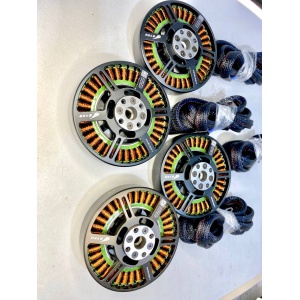

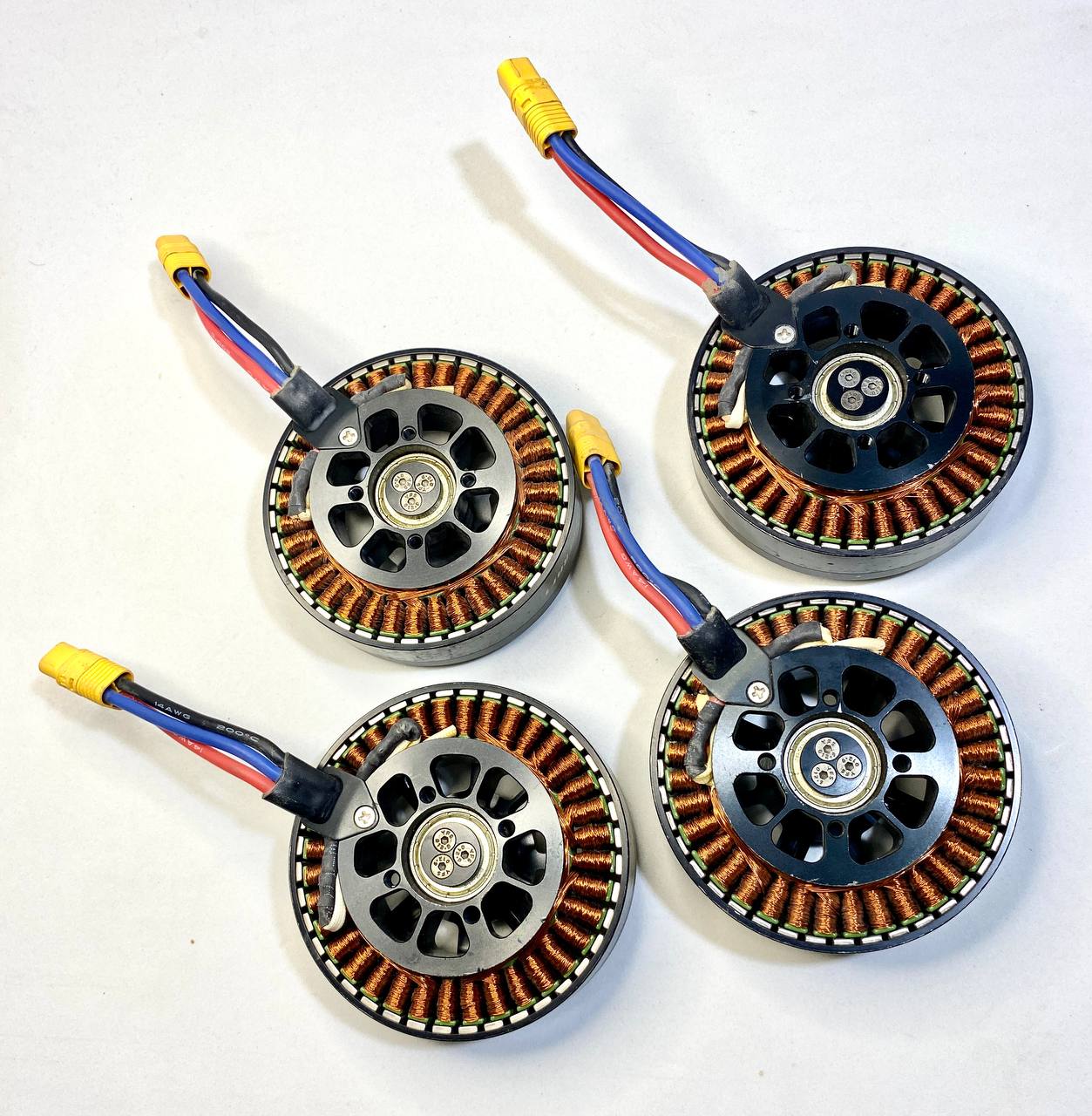

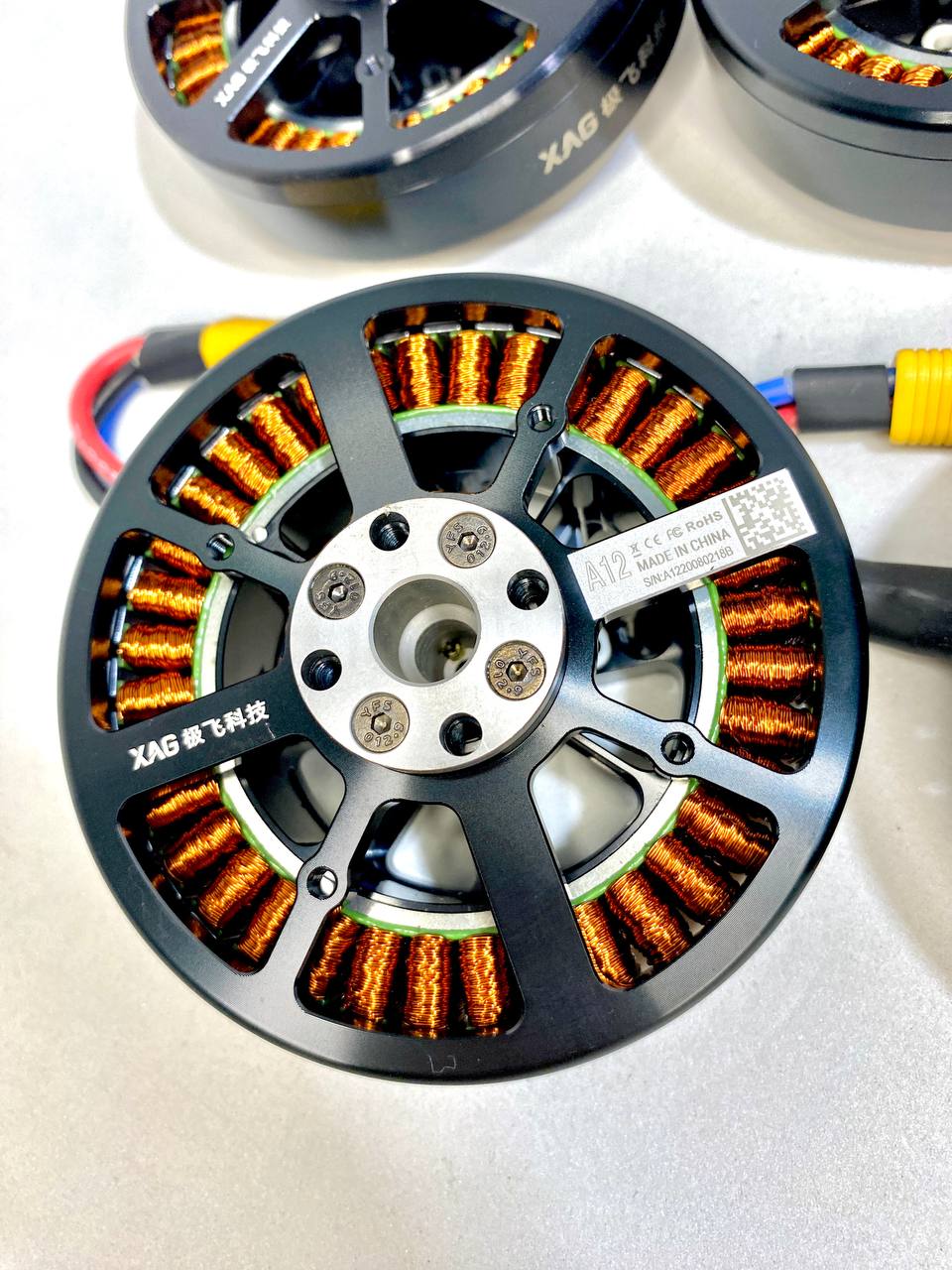

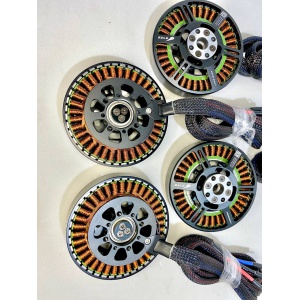

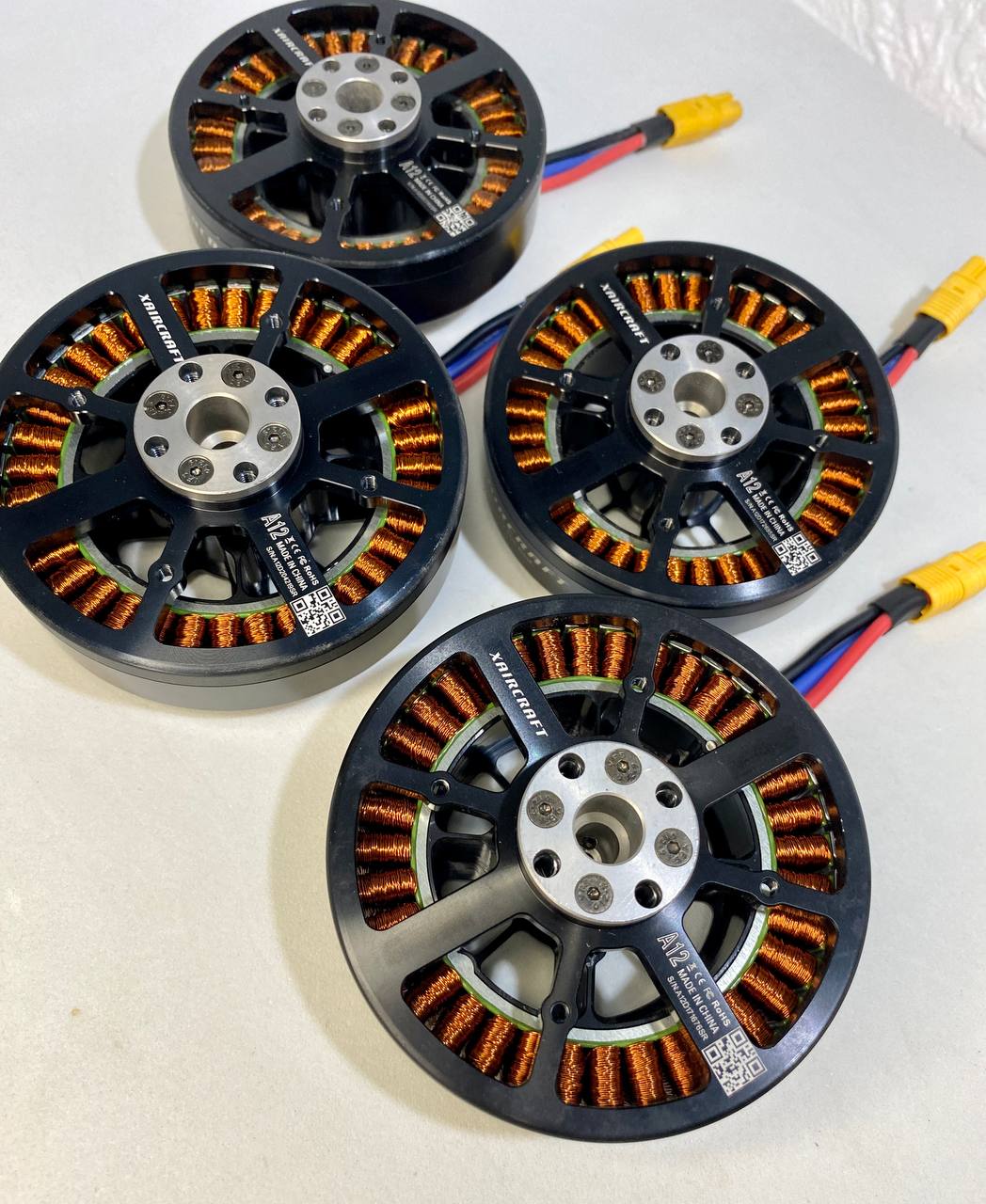

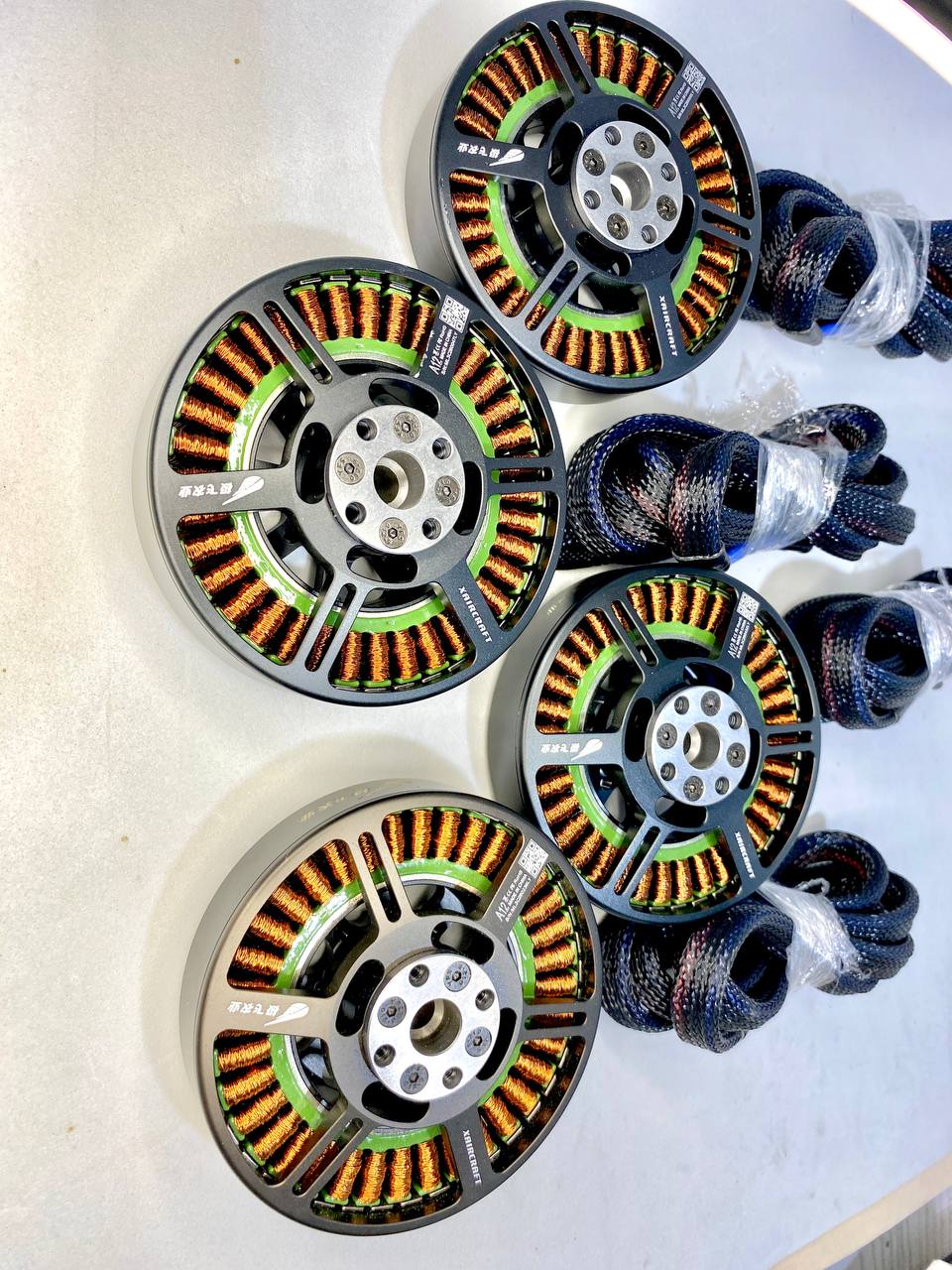

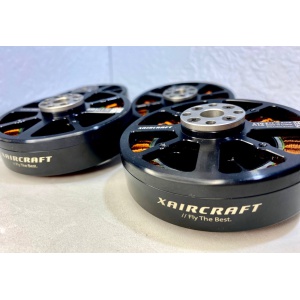

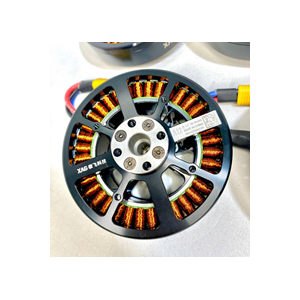

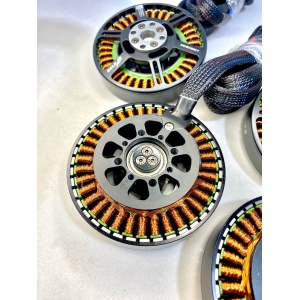

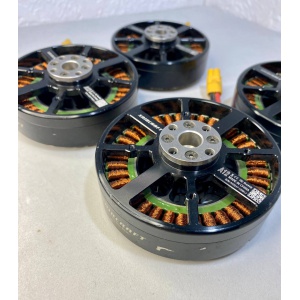

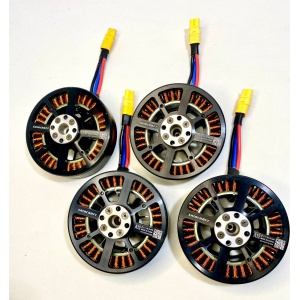

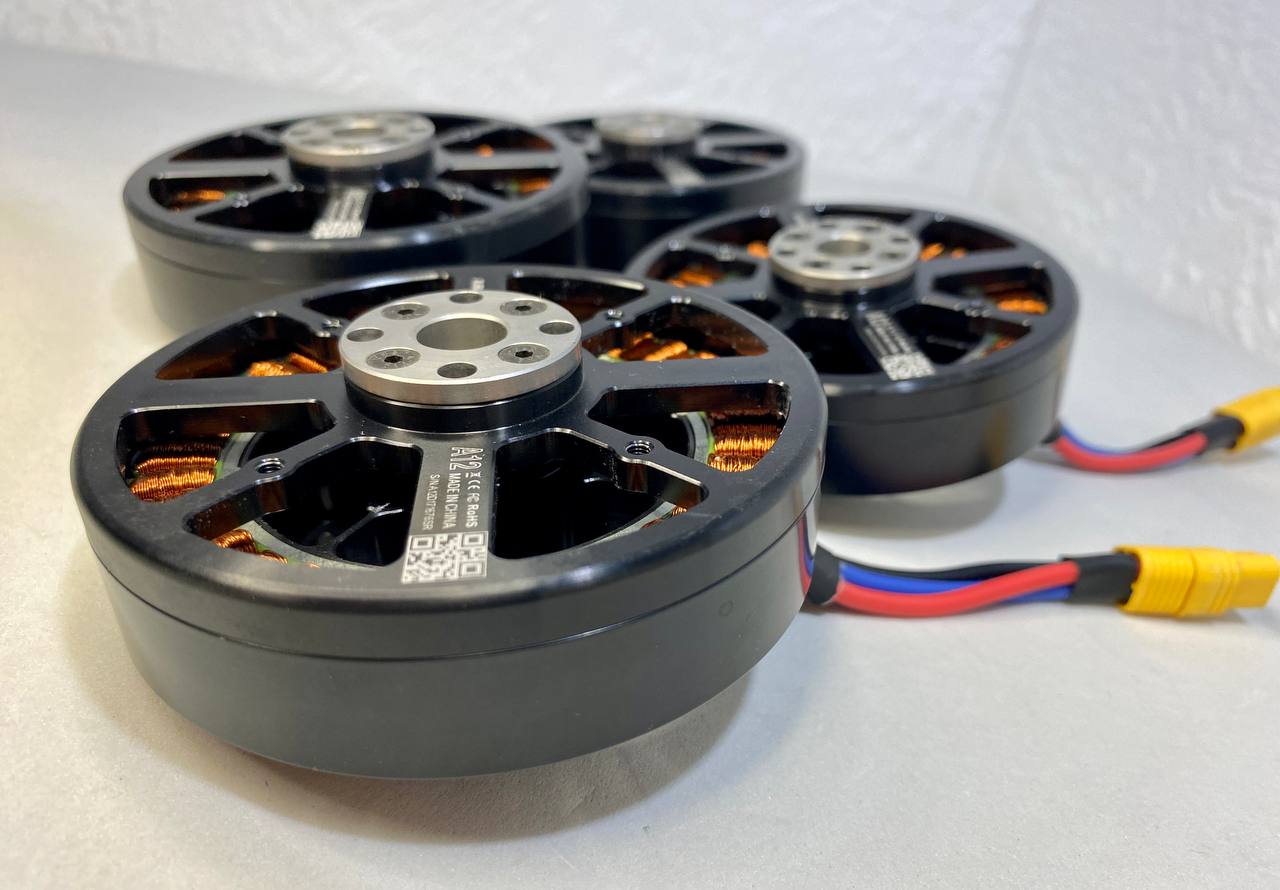

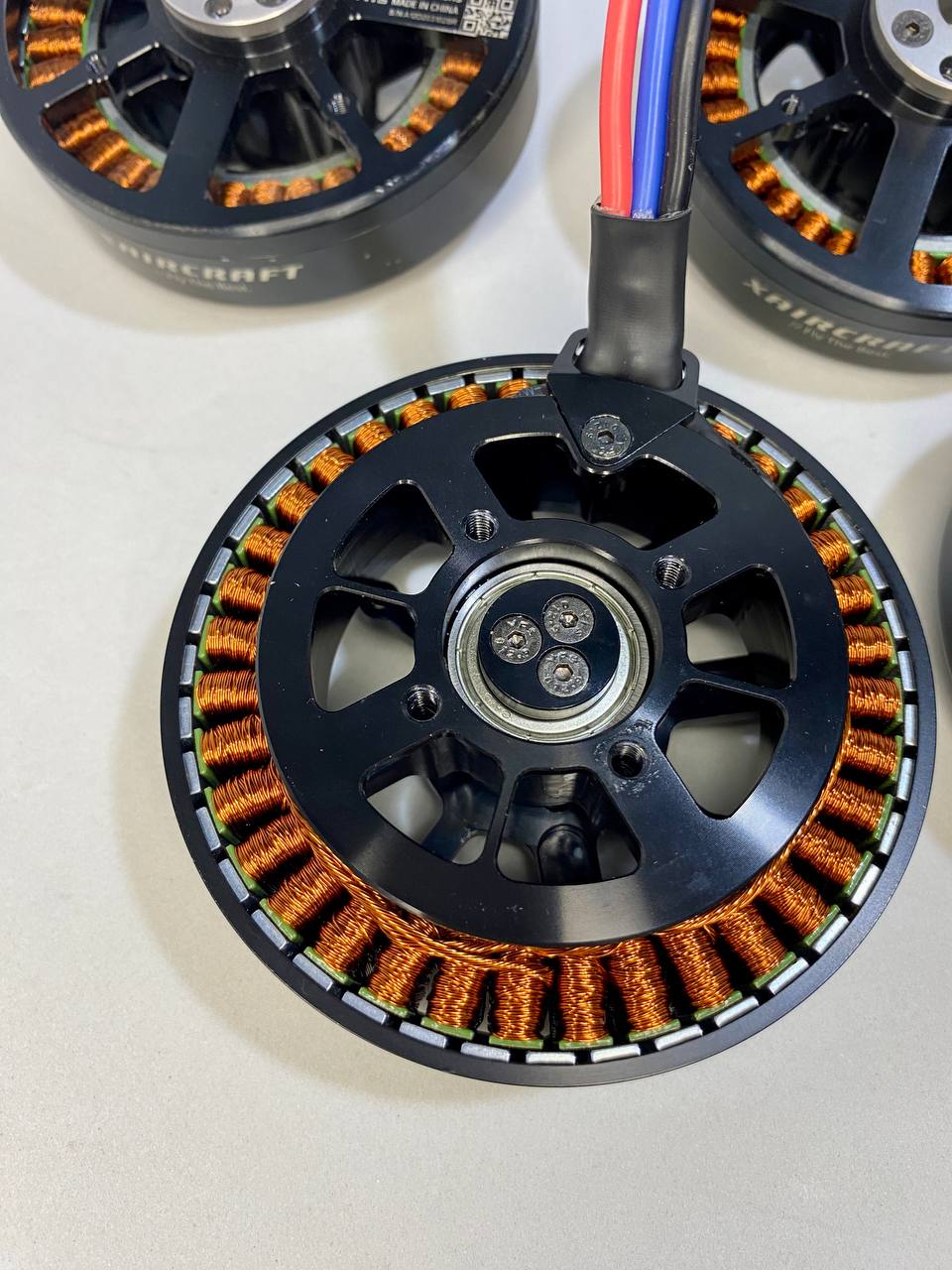

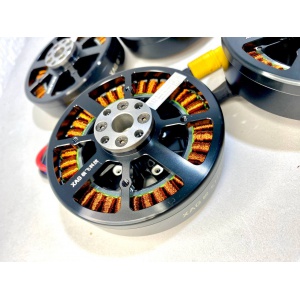

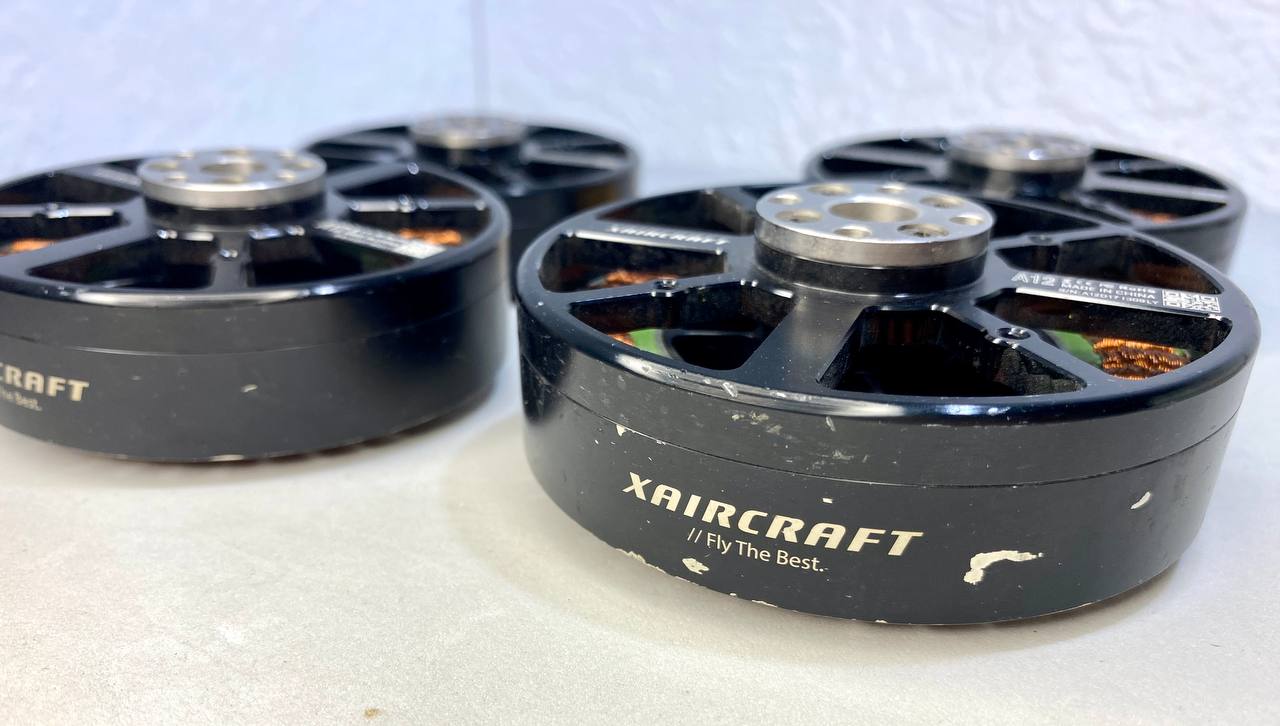

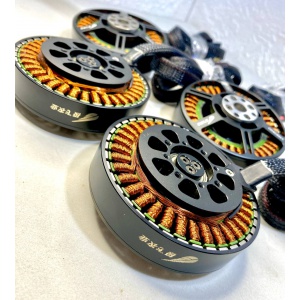

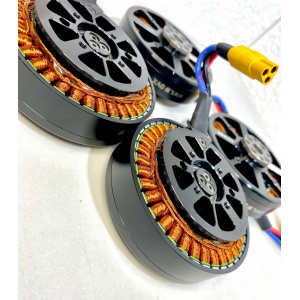

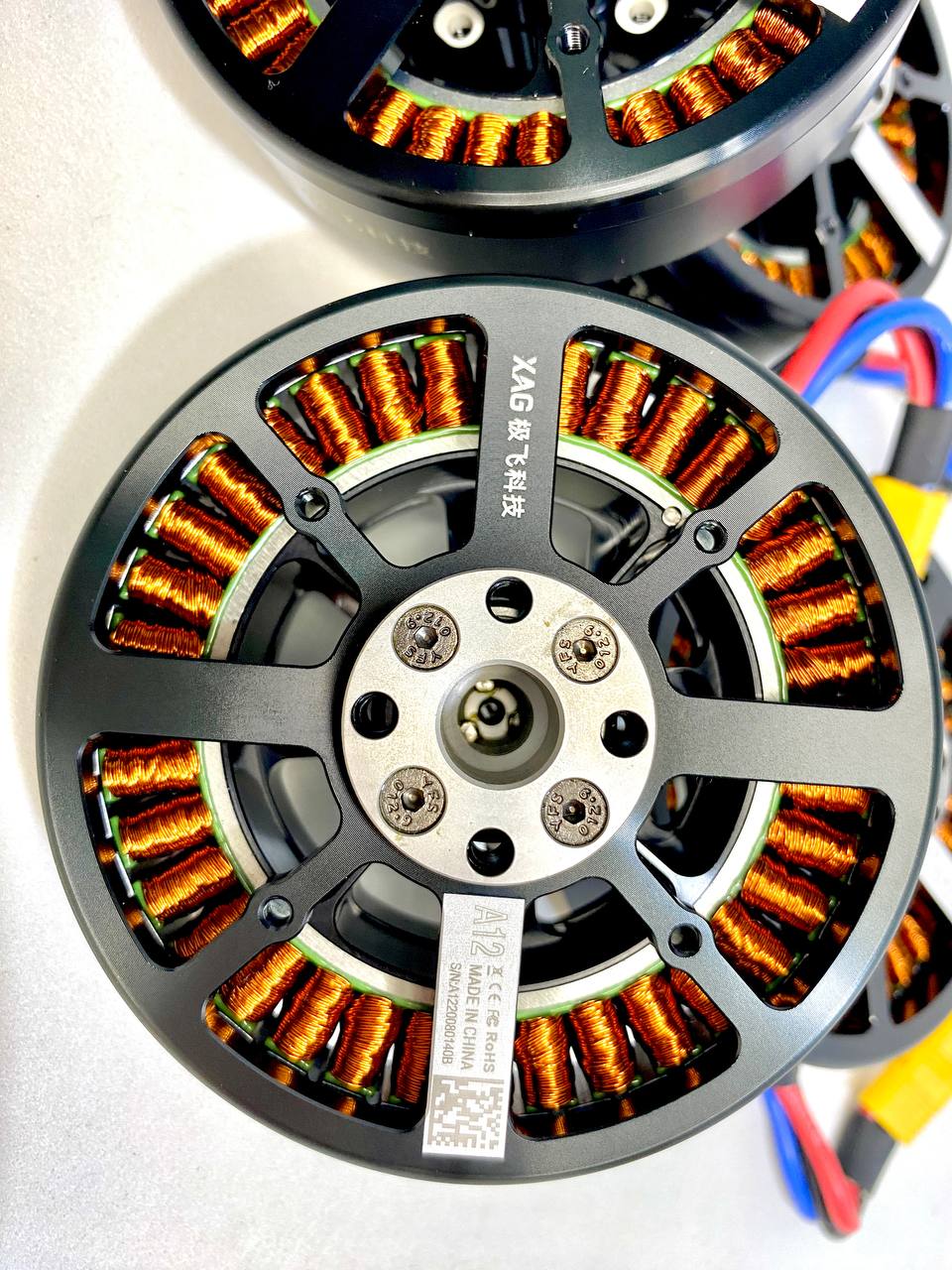

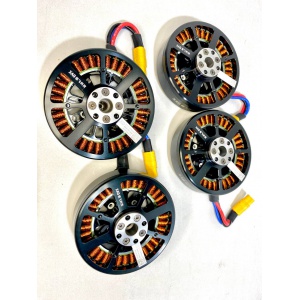

A12 Brush-less motor

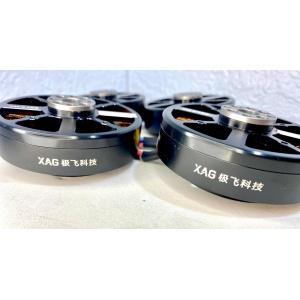

XAG Agricultural Intelligence engine outer rotor motor
For P20 PLANT PROTECTION UAS
MOTOR CONDITION: All the functions could be work well, Test before
|
A12 brushless motor
|
|
|
Dimensions (stator)
|
83 x 14mm
|
|
KV value
|
100rpm/V
|
|
maximum power
|
2500W (single)
|
|
Maximum pulling force
|
15.5kg (single)
|
|
Applicable ESC:
|
|
|
Model
|
VC12100
|
|
Maximum working voltage
|
52.2V (12S Lipo)
|
|
Maximum continuous working current
|
100A
|
|
Four axis flight parameters
|
|
|
Standard takeoff weight
|
28KG (10L medicine box)
|
|
Maximum effective takeoff weight
|
32kg (near sea level)
|
|
Maximum thrust weight ratio
|
2.14
|
|
Load ratio
|
0.35
|
Motor Diameter: 91mm
Motor height:33mm
Configuration:36N42P
Wire：16# silica gel wire 90mm in length
Protection grade：IP55
kv：120kv
Motor weight：534.5g
NO load current(18v)：1A
Interphase resistance:22mΩ
Max current(180s):95A
Max Power(180s):2500W
Battery:10-14S Lipo
POP:28-32”
ESC:FLAME 180A, ALPHA 180A HV +G30*10.5*
Battery:12s
weight:480g
Packing include:
